Modems
|
AOpen FM56-SVV
56k Software Modem
$29 |
AOpen FM56-FX
56k Hardware Modem
$49 |
|
USR
Software Modem
$39 |
USR
Hardware Modem
$59 |
Sound Cards
|

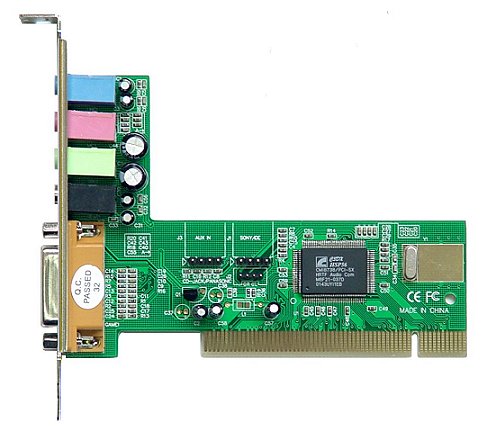

C-Media 6 Channel Sound
PCI Sound Card
$39 |
|
 |
 |
|
24-bit Analog-to-Digital conversion of
analog inputs at 96kHz sample rate |
|
|
|
|
24-bit Digital-to-Analog conversion of
digital sources at 96kHz to analog 7.1 speaker output |
|
|
|
|
24-bit Digital-to-Analog conversion of
stereo digital sources at 192kHz to stereo output |
|
|
|
|
16-bit to 24-bit recording sampling
rates: 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz |
|
|
|
|
ASIO 2.0 support at 16-bit/44.1kHz,
16-bit/48kHz, 24-bit/44.1kHz 24-bit/48kHz and
24-bit/96kHz with direct monitoring |
|
|
|
|
Enhanced SoundFont support at up to
24-bit resolution |
Audio Performance (Rated Output @ 2Vrms, Typical Value)
|
|
|
|
Signal-to-Noise Ratio (20kHz Low-pass
filter, A-Weighted) |
|
|
|
|
|
|
- |
|
|
|
|
- |
|
| Front and Rear
Channels: |
|
109dB |
|
|
|
- |
|
| Center, Subwoofer and
Side Channels |
: |
109dB |
|
|
|
|
|
|
Total Harmonic Distortion + Noise at
1kHz (20kHz Low-pass filter) = 0.004% |
|
|
|
|
Frequency Response (-3dB, 24-bit/96kHz
input ) 10Hz to 46kHz |
|
|
|
|
Frequency Response (-3dB, 24-bit/192kHz
input) 10Hz to 88kHz (Stereo only) |
Connectivity
|
|
|
|
Speaker and Headphone connections for
stereo to 7.1 (Line Out via three 3.5mm mini jacks) |
|
|
|
|
Line In / Microphone In / Optical Out*
(shared 3.5mm FlexiJack) |
|
|
|
|
Auxiliary Line level Input (via 4-pin
Molex connector) |
|
|
|
|
Intel HD Audio Compatible Front Panel
Header (2x5pin) |
* Optical Out supports stereo SPDIF out and
pass through of multichannel DVD sound
$139 |
Video Cards
|

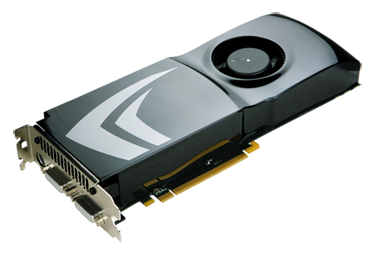

GeForce
9800 GTX+
GPU Engine Specs:
| Processor Cores |
128 |
| Graphics Clock (MHz) |
738 MHz |
| Processor Clock (MHz) |
1836 MHz |
| Texture Fill Rate
(billion/sec) |
47.2 |
Memory Specs:
| Memory Clock (MHz) |
1100 MHz |
| Standard Memory Config |
512 MB |
| Memory Interface Width |
256-bit |
| Memory Bandwidth
(GB/sec) |
70.4 |
Feature Support:
| NVIDIA SLIŽ-ready* |
2-way/3-Way
|
| GeForce 3D Vision
Ready |
 |
| NVIDIA PureVideoŽ
Technology* |
HD
|
| NVIDIA PhysX™-ready |
*
|
| NVIDIA CUDA™
Technology |
|
| HybridPower™
Technology* |
|
| GeForce Boost |
|
| Microsoft DirectX |
10 |
| OpenGL |
2.1 |
| Certified for Windows
Vista |
|
Display Support:
| Maximum Digital
Resolution |
2560x1600 |
| Maximum VGA Resolution |
2048x1536 |
| Standard Display
Connectors |
HDTV
Dual Link DVI |
| Multi Monitor |
|
| HDCP* |
|
| HDMI* |
Via adapter
|
| Audio Input for HDMI |
SPDIF |
Standard Graphics Card Dimensions:
| Height |
4.376 inches |
| Length |
10.5 inches |
| Width |
Dual-slot |
Thermal and Power Specs:
| Maximum GPU
Temperature (in C) |
105 C
|
| Maximum Graphics Card
Power (W) |
141 W
|
| Minimum System Power
Requirement (W) |
450 W
|
| Supplementary Power
Connectors |
6-pin x2 |
$159

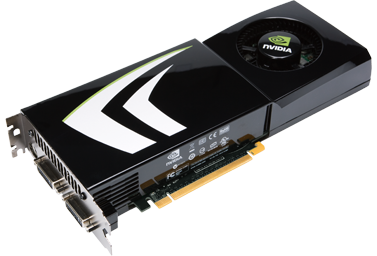

GeForce
GTX 260
GPU Engine Specs:
| Processor Cores |
192 |
| Graphics Clock (MHz) |
576 MHz |
| Processor Clock (MHz) |
1242 MHz |
| Texture Fill Rate
(billion/sec) |
36.9 |
Memory Specs:
| Memory Clock (MHz) |
999 MHz |
| Standard Memory Config |
896 MB |
| Memory Interface Width |
448-bit |
| Memory Bandwidth
(GB/sec) |
111.9 |
Feature Support:
| NVIDIA SLIŽ-ready* |
2-way/3-Way
|
| GeForce 3D Vision
Ready |
|
| NVIDIA PureVideoŽ
Technology* |
HD
|
| NVIDIA PhysX™-ready |
*
|
| NVIDIA CUDA™
Technology |
|
| HybridPower™
Technology* |
|
| GeForce Boost |
|
| Microsoft DirectX |
10 |
| OpenGL |
2.1 |
| Certified for Windows
Vista |
|
Display Support:
| Maximum Digital
Resolution |
2560x1600 |
| Maximum VGA Resolution |
2048x1536 |
| Standard Display
Connectors |
Dual Link DVI
HDTV |
| Multi Monitor |
|
| HDCP* |
|
| HDMI* |
Via adapter
|
| Audio Input for HDMI |
SPDIF |
Standard Graphics Card Dimensions:
| Height |
4.376 inches (111
mm) |
| Length |
10.5 inches (267
mm) |
| Width |
Dual-slot |
Thermal and Power Specs:
| Maximum GPU
Temperature (in C) |
105 C
|
| Maximum Graphics Card
Power (W) |
182 W
|
| Minimum System Power
Requirement (W) |
500 W
|
| Supplementary Power
Connectors |
6-pin x2 |
$299

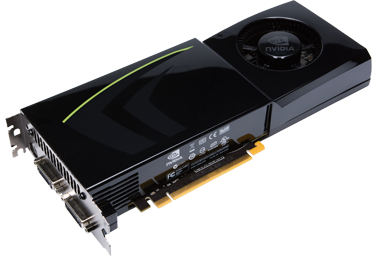

GeForce GTX 280
GPU Engine Specs:
| Processor Cores |
240 |
| Graphics Clock (MHz) |
602 MHz |
| Processor Clock (MHz) |
1296 MHz |
| Texture Fill Rate
(billion/sec) |
48.2 |
Memory Specs:
| Memory Clock (MHz) |
1107 MHz |
| Standard Memory Config |
1 GB |
| Memory Interface Width |
512-bit |
| Memory Bandwidth
(GB/sec) |
141.7 |
Feature Support:
| NVIDIA SLIŽ-ready* |
2-way/3-Way
|
| GeForce 3D Vision
Ready |
|
| NVIDIA PureVideoŽ
Technology* |
HD
|
| NVIDIA PhysX™-ready |
*
|
| NVIDIA CUDA™
Technology |
|
| HybridPower™
Technology* |
|
| GeForce Boost |
|
| Microsoft DirectX |
10 |
| OpenGL |
2.1 |
| Certified for Windows
Vista |
|
Display Support:
| Maximum Digital
Resolution |
2560x1600 |
| Maximum VGA Resolution |
2048x1536 |
| Standard Display
Connectors |
HDTV
Dual Link DVI |
| Multi Monitor |
|
| HDCP* |
|
| HDMI* |
Via adapter
|
| Audio Input for HDMI |
SPDIF |
Standard Graphics Card Dimensions:
| Height |
4.376 inches (111
mm) |
| Length |
10.5 inches (267
mm) |
| Width |
Dual-slot |
Thermal and Power Specs:
| Maximum GPU
Temperature (in C) |
105 C
|
| Maximum Graphics Card
Power (W) |
236 W
|
| Minimum System Power
Requirement (W) |
550 W
|
| Supplementary Power
Connectors |
6-pin & 8-pin |
$359 |
|
|
